"In my opinion, the LINKNIFE is exceptionally brilliant! It is the best release I know about."

Donnell Hewett,
Towing pioneer, author of Skyting Criteria, inventor of the concept of towline tension sensing and designer of the Hewett Center-of-Mass bridle.

























"NOTHING works better than the Linknife."

Jeff Sinason
Former Region 6 Director

.

The light weight, low cost, sure fire, place anywhere,
Tow Release for Hang Gliders and Paragliders

Your tow release MUST work
every single time.

Cut the weaklink and you're off the towline. It's that simple. No looped rings or strings to hang up. No expensive, draggy cable hanging out in the breeze. And best of all, no surprises.

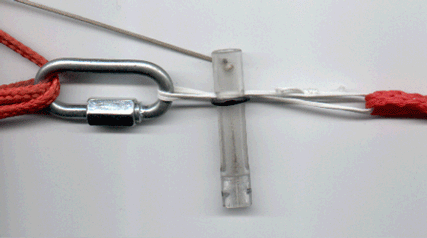

Click here to see an animation of how it works (opens a new page)

Two stainless steel blades form a "V" which quickly and cleanly cut most anything that fits into the 3/16" slots, including perlon, towline, webbing and of course string weaklinks of any strength.

Aug 2012: Video of Miller Stroud foot-launching his ATOS
using 2 Linknife Releases with an over/under bridle.

LKpix1LKpix2LKpix3LKpix4LKpix5
The Linknife works by cutting the weaklink.

NAA logo The Linknife has received the National Aeronautic Association Safety Award. What an incredible honor!



What's so special about the Linknife?

  • Tow force passes through it, not into it. The amount of pull to activate is always the same. No matter how much force is on the towline, it always takes 4-5 pounds of pull to cut the weaklink. With all other bridles, the more tow force there is, the more strength needed to pull the release cord.

  • Light weight - At a mere 1/4 ounce, there's not a lot of mass that could cause problems to the pilot in case of a snap-back due to a towline break.

  • Small size - The Linknife is 2.5" long. This is quite a bit smaller than all other releases, so stowing it or placing it in optional positions is easy.

  • No towline hardware - Less chance of injury to people and things on the ground, including the driver who reels in the line, and greatly reduced chance of snagging a line during retrieval.

  • Designed for safety - From the small slots that prevent fingers from getting cut to the easily replaced O-ring, everything about the Linknife is about safety. It's up to you to use it properly and tow safely, of course.

  • Flexible placement - Whatever style of towing you do, there's a place for the Linknife – on the glider, on the pilot, at the tow vehicle – for safety and reliability. It can also accommodate tubular webbing, perlon, towline... whatever will fit in the slots.

  • Works at any angle - Easily rotates around the weaklink to align with any pull direction. The round shape is unaffected by the wind and won't rotate on its own.

  • Low cost - At $20 each in the USA (plus $1.50 shipping), the Linknife is the least expensive, most trustworthy release available anywhere.

A 1/4" (6mm) thick steel ring or rapid link - as shown in the photo above - backs up the Linknife in Static Line Towing or setups where the Linknife requires an angular pull... smaller links can get caught in the slots. In this manner, the rapid link prevents the Linknife from cutting the bridle. For Aerotowing, where an optional main release position is at the keel, the rapid link may not be necessary as the direction of pull to activate is nearly perpendicular to the bridle.

No matter what type of towing you are doing – Aero, Payout, Static Line, foot, dolly or platform launched – there is a place for the Linknife. It cannot accidentally come off, so it's always there when you need it.

X-38 photoNASA purchased Linknifes for use on the X-38 Space Station Lifeboat, using four on each craft to cut away the chutes if there's a problem. The head engineer was amazed that the Linknife weighs a mere 1/4 ounce and has no moving parts except for the sliding O-ring. It was also used to cut away the parachute on landing in Project Stardust. Video link

Linknife Tow Release photo



COSTS:

Linknife — $20 each + shipping.
Club/dealer discounts available.

Bridles (aero or static), include Linknife,
rapid links and setup instructions

Convenient Ordering:

Note: Using PayPal is very simple. You do NOT need to be a member of PayPal to make a purchase. You may use a credit card like any other system. If your order is to be shipped outside the US or prefer to pay by check, please contact me.

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
LINKNIFE - USA

=================================
US orders (1-9) @ $20.00 each + $1.50 shipping.

paypal button

-----------------------------------------------------
Quantity orders (10+) @ $15.00 each + $5.00 shipping per lot of 10.
Use PayPal's "Send Money" option or drop me a note and we'll work it out.
THANKS.
PayPal button

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
LINKNIFE - CANADA
=================================
US orders (1-9) @ $20.00 each + $7.00 shipping.

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Other orders – please write with your specifics for quantity
and shipping method. Use PayPal's "Send Money" feature for
the total amount. (Recently sent 10 to Turkey.)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
BRIDLES – Static Line Towing and Aerotowing
=================================
All bridles are made from red 900-pound heat set and stretched braided dacron with woven and hand-sewn loops in the ends. Measurements are what I've found to work; if you have a different need, gimme a call.

Static Line Tow Bridle - aka: 2:1 Hewett Center of Mass Bridle
SEE BRIDLE PAGE or STATIC LINE PAGE

For foot launch towing with a static or payout winch. Kit contents include:
(A) Main line is 22' loop-to-loop.
(B) Waist line is 3' which allows tying an overhand loop knot to keep the shackle, self-locking carabiner or whatever you choose, from sliding side-to-side.
(C) Keel line is a 6' length of plain bridle material without finished ends, for you to tie however works best for your glider.
(D) Four (4) 1/4" rapid links
(E) Linknife Release with extra O-ring.

COST: $70.00 + $5.00 mailing to US addresses.

Kit does not include the static tow waist bridle release mechanism (such as sailboat shackle) or release pull string as there are too many optional ways of setting this up. Custom bridles are available; please call or write with your specifications.

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Aerotow Bridle - 1:1 V-line
SEE AEROTOW PAGE

For aerotowing via foot or dolly launch. Kit contents include:
(A) Main V-line is about 8' loop-to-loop.
(B) Chest bridle is 3' long and attaches to one end loop of the main bridle with a larkshead knot or, if the release is placed at the keel, a secondary/backup release can be placed here.
(C) Keel line is a 6' length of plain bridle material without finished ends, for you to tie however works best for your glider.
(D) Two (2) 1/4" rapid links for at the bridle apex and attaching the main bridle at the keel,
(E) Two (2) 1/8" rapid links for attaching the chest bridle to the harness shoulder loops
(F) Linknife Release with extra O-ring.

COST: $55.00 + $5.00 mailing to US addresses.

Kit does not include the release pull string as there are too many optional ways of setting this up. Custom bridles are available; please call or write and let's see what can be done.

Use PayPal's "Send Money" option for easiest payment.

-----------------------------------------------------
or send check to:
Peter Birren
1657 W Farwell Ave, #3C
Chicago IL 60626
P: 773-654-3950
E: Email

DISCLAIMER: As with all aviation endeavors, your choice and use of equipment is totally up to you. It is assumed you are an experienced HG or PG tow pilot who is intimately familiar with the style of towing you will be doing. As such, YOU ASSUME ALL RISK AND LIABILITY in the use of the Linknife, as well as all other parts, functions and personnel involved in the towing and flight operations. If you do not have experience in towing, please contact an instructor for expert training. Trying to learn on your own can, and probably will, result in your injury and even death. Many pilots have paid the ultimate price so we may now tow as safely as never before possible. Please learn from their lessons.
